Kelin coconut shell activated carbon is produced from mature coconut shells harvested from trees aged five years or older. This raw material naturally possesses a dense lignocellulosic structure that yields activated carbon with extremely high hardness and superior wear resistance.

Through a carefully controlled manufacturing process—consisting of impurity removal, carbonization, steam activation, crushing, screening, air classification, and final re-screening—the resulting carbon achieves an optimal combination of:

High microporous surface area

Low ash content

Excellent mechanical strength

Uniform particle size distribution

These characteristics make Kelin coconut shell carbon particularly effective for the adsorption of gold-cyanide complexes in aqueous solutions.

Types of Activated Carbon for Gold Extraction

Gold recovery operations typically require different carbon forms depending on the extraction method. The two most widely used varieties include granular activated carbon and pelletized (columnar) activated carbon.

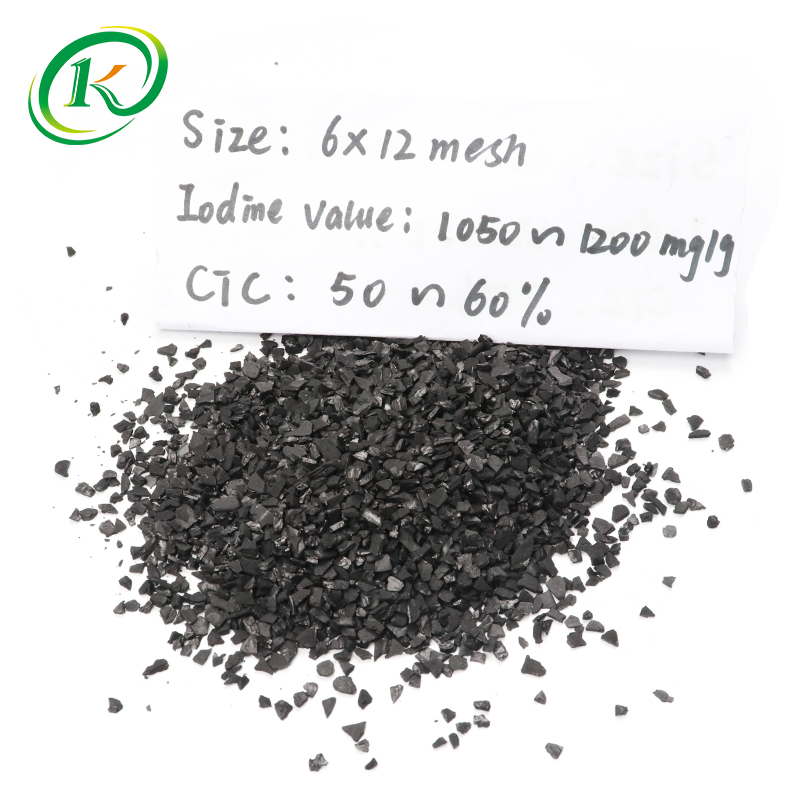

Granular Coconut Shell Activated Carbon for CIP and CIL Systems

Kelin granular activated carbon is specifically engineered for Carbon-in-Pulp (CIP) and Carbon-in-Leach (CIL) circuits, where carbon particles must withstand continuous agitation, slurry flow, and multiple regeneration cycles.

The highly developed microporous structure of Kelin coconut shell carbon provides exceptional adsorption performance for gold cyanide complexes.

Performance Advantages

Extremely high abrasion resistance for extended service life

Low platelet content reducing carbon losses during screening

Excellent adsorption kinetics for faster gold recovery

Consistent particle size distribution ensuring stable circuit operation

These properties allow mining operations to maintain high gold loading capacity while minimizing carbon degradation.

Pelletized (Columnar) Activated Carbon for CIC Gold Recovery Systems

Kelin pelletized activated carbon, also known as extruded or columnar carbon, is specifically designed for Carbon-in-Column (CIC) systems. In these systems, carbon must maintain structural stability while allowing efficient solution flow through packed columns.

Advantages in CIC Systems

Uniform cylindrical structure for consistent hydraulic flow

High mechanical strength for column packing

Reduced pressure drop across columns

Long operational lifespan

Kelin pelletized carbon ensures reliable gold adsorption in fixed-bed column operations, particularly in heap leaching and solution-based recovery systems.

Why Kelin Coconut Shell Carbon Is Ideal for Gold Mining

Compared to coal-based or wood-based carbons, Kelin coconut shell activated carbon offers several critical advantages for gold recovery.

Superior Hardness

Kelin coconut carbon exhibits hardness values approaching 99%, allowing it to withstand repeated handling, screening, and regeneration cycles without significant particle degradation.

Optimized Microporous Structure

Gold cyanide complexes are extremely small molecules. Kelin coconut shell carbon contains dense micropores ideally suited for capturing these complexes, improving adsorption efficiency.

Low Ash Content

Lower ash reduces interference with adsorption and minimizes contamination during the gold recovery process.

Reduced Carbon Loss

Uniform particle size and minimal platelets reduce losses during carbon transfer and screening operations.

Gold Recovery Methods Using Activated Carbon

Three major gold extraction methods rely heavily on activated carbon adsorption technology.

Carbon-in-Pulp (CIP)

In CIP systems, activated carbon is introduced into tanks containing gold-bearing pulp after the leaching stage. Gold-cyanide complexes adsorb onto the carbon particles while the slurry remains in agitation.

Advantages

High recovery rates

Suitable for large-scale mining operations

Efficient carbon loading and elution cycles

Carbon-in-Leach (CIL)

CIL integrates leaching and adsorption in the same tanks, allowing activated carbon to capture dissolved gold as soon as it forms.

Key Benefits

Reduced processing time

Lower capital investment

Improved gold recovery in certain ore types

Carbon-in-Column (CIC)

CIC systems are commonly used in heap leaching operations, where gold-bearing solution passes through columns packed with activated carbon.

Benefits

Ideal for dilute gold solutions

Simple operational structure

Efficient for heap leach operations

Quality Control in Kelin Activated Carbon Production

High-performance gold recovery carbon requires rigorous quality assurance at every stage of production. Kelin implements comprehensive quality control procedures throughout the manufacturing process.

1. Quality Control Procedures

Raw material inspection

Activation temperature monitoring

Particle size classification

Attrition resistance testing

Iodine and CTC activity testing

Moisture and ash analysis

Multi-batch blended testing

Each production batch undergoes multiple laboratory tests to ensure consistent adsorption capacity and mechanical durability. Third-party testing is also supported to guarantee independent verification of product specifications.

Packaging and Customization Options

Activated carbon used in mining must be packaged to preserve quality during storage and transportation. Kelin offers a range of packaging options to suit different operational requirements.

Typical packaging formats include:

25 kg industrial bags

500 kg jumbo bags

Custom packaging solutions are also available for mining companies seeking branded packaging or specialized handling requirements.

Custom Activated Carbon Solutions for Gold Mining Projects

Different ore bodies and recovery circuits require tailored carbon specifications. Kelin offers customization options to meet specific project requirements, including adjustments to:

Particle size distribution

CTC activity levels

Iodine adsorption capacity

Ash content limits

Moisture levels

Packaging configuration

Mining engineers often require site-specific carbon optimization to maximize recovery efficiency and reduce operational costs. Kelin’s technical team works closely with clients to develop customized solutions for their unique applications.

Additional Applications of Kelin Coconut Shell Activated Carbon

Although widely used in gold recovery, Kelin coconut shell activated carbon also performs exceptionally well in several industrial applications.

Water Treatment

High iodine value carbons remove organic contaminants and improve taste and odor in drinking water systems.

Air Purification

Activated carbon effectively removes VOCs, odors, and toxic gases from industrial emissions.

Solvent Recovery

High-activity carbons capture organic solvents such as benzene and toluene in industrial processes.

Catalyst Carriers

Pelletized carbon supports catalysts used in gas treatment and chemical processing systems.

How to Select the Best Activated Carbon for Gold Recovery

Choosing the optimal carbon requires careful consideration of several operational parameters. Kelin’s technical experts can assist in selecting the right product for specific applications.

Key Selection Criteria

Adsorption capacity

Mechanical strength

Particle size distribution

Attrition resistance

Ash content

Regeneration performance

The correct carbon specification ensures maximum gold loading, minimal carbon loss, and long operational lifespan within the recovery circuit.

High-Efficiency Coconut Shell Activated Carbon for Modern Gold Mining

Gold recovery operations rely on adsorption materials that combine durability, precision pore structure, and consistent performance. Kelin coconut shell activated carbon delivers exactly these attributes.

With high iodine values, excellent hardness, optimized microporosity, and customizable specifications, Kelin coconut shell carbon remains a preferred choice for CIP, CIL, and CIC gold recovery systems worldwide.

Mining operations that implement Kelin’s high-quality activated carbon benefit from:

Improved gold adsorption efficiency

Reduced carbon consumption

Lower operational costs

Stable recovery performance
